Are you interested in effective improvement and increasing the pace of apiary works? At the same time, would you like to keep the quality of the honey produced at the highest level? The combination of both of the above elements is possible - thanks to the use of modern apiary solutions proposed by LYSON.

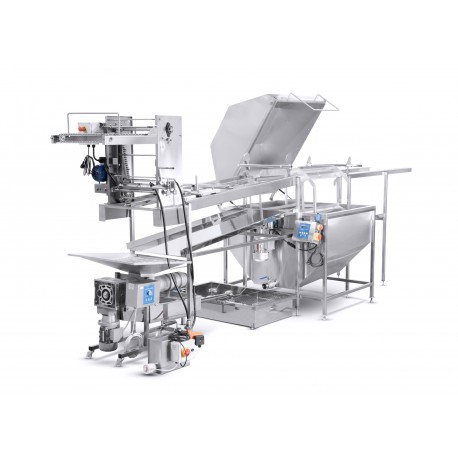

The team of experienced designers makes sure that the designed devices meet the highest quality standards of the modern beekeeping industry. Professional line for uncapping and extracting honey MINIMA LINE It consists of several devices combined into one functional and perfect mechanism.

They are: a mechanical uncapper with a chain feeder, an extruder for cappings, a loading track, a frame feeder with a manually operated trolley, a horizontal honey extractor, a receiving track, a vertical sieve, a honey pump, a hot water generator and a special tub with a perforated insert for initial cleaning. The honey extractor used holds 40 frames in two sections. The efficiency of a mechanical uncapper with a feeder is 4-6 frames per minute. To optimize the operation of the knives, we have used hot water heating in a closed circuit. The hot water generator used in the device has a capacity of 8.5 l. During the uncapping process, cappings are formed which go to the extruder with a capacity of 100 kg per hour. Its task is to separate the honey from the wax. The honey flows down to the filter sieve, while the pressed wax goes to a special container. At the same time, the uncapped frames automatically go to the loading track that connects the uncapping machine with the honey extractor. From the feeding track, they are placed in the basket of the honey extractor by means of a manual trolley, followed by the honey spinning process. The lid of the honey extractor has been equipped with gas springs to facilitate manual opening / closing of the honey extractor. After centrifugation, the frames go to the receiving table from which the beekeeper easily places them in the bodies. The centrifuged honey flows to a vertical sieve where it is filtered. A bathtub with a perforated insert has a capacity of 120 l. The line is entirely made of acid-proof stainless steel.

The proposed line is one of the most attractive offers in LYSON's offer. The device is intended for medium and larger apiaries who want to optimize beekeeping.

Horizontal honey extractor:

- for 40 frames (two sections)

- 0.75 kW engine

- 230V power supply

- 2 "ball drain valve

- honey extractor, length 1370 / width 1150 / height 1450 mm

Mechanical uncapper with chain feeder:

- capacity 4-6 frames / min.

- knives heated with hot water in a closed circuit

- hot water generator with a capacity of 8.5 L.

- power: 2.1 kW

- 230V power supply

- uncapper dimensions: length 2600 / width 1000 / height 1900 mm

Frame feeder with manual loading trolley:

- length: 1500 mm

Frame receiver:

- single, length: 1500 mm

- dimensions: length 1600 / width 700 / height 1500 mm

Cappings extruder:

- capacity up to 100 kg / h

- adjustable engine speed: max 9 rpm

- power 0.55 kW

- 230V power supply

Honey pump:

- capacity: 900

- power: 0.37 kW

- power supply: 230V

- dimensions: length 700 / width 400 / height 650 mm

Tub with a perforated insert for preliminary cleaning:

- capacity 120 l

Dimensions of other components:

- press length 1100 / width 750 / height 850 mm

- sieve length 1150 / width 800 / height 300 mm

Total line dimensions:

- length 5000 mm

- width 1700 mm

- height 1900 mm

Line weight:

- total net 419 kg

- 80 kg net press

- net pump 25 kg

- sieve + net float 14 kg

- honey extractor + feeder + receiver + net uncapper 300 kg
